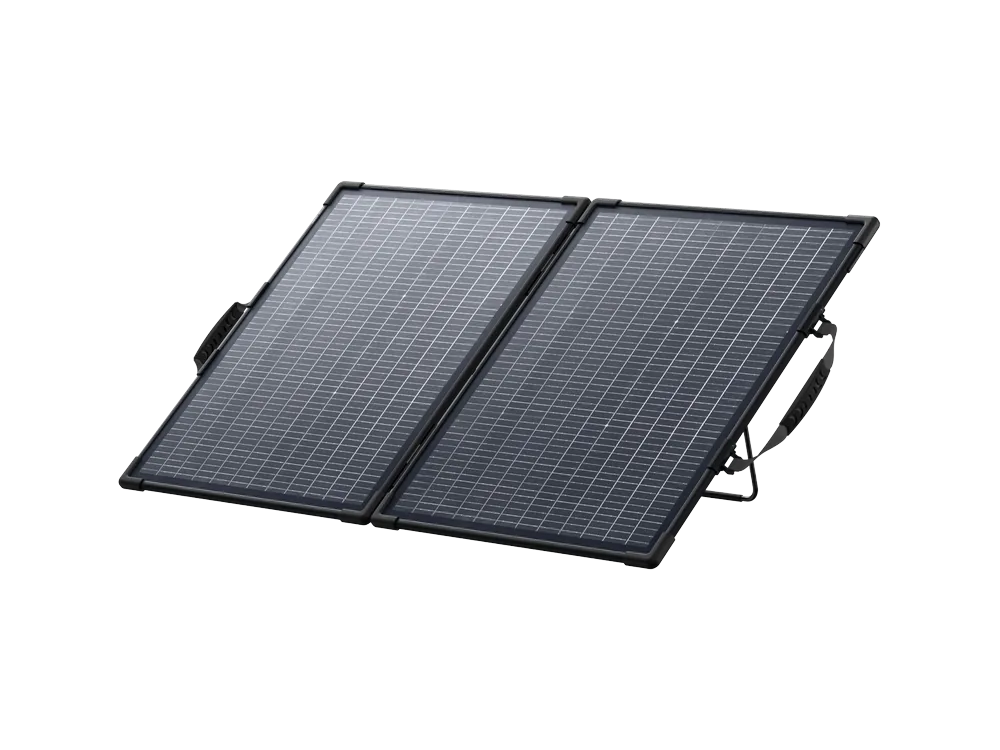

Anker SOLIX PS100 Bifacial
Anker SOLIX

PS100 Bifacial

100 W panel with an XT60i plug. Expect about 70 W at midday in clear sun.

Where to buy
Anker SOLIX store
Price not checked yet

We may earn a commission if you buy through these links. It never changes a verdict.

The four numbers on the label

Every panel has a sticker on the back with these. The station cares about the first two most.

VocUnconfirmed
25.9 V
Open-circuit voltage

The highest voltage the panel makes, with nothing plugged in. This must stay under the station's limit, including on cold mornings.

IscUnconfirmed
4.9 A
Short-circuit current

The most current it can push. Stations cap current; over the cap you lose watts, or on some brands it is not allowed.

VmpUnconfirmed
21.6 V
Voltage at max power

The working voltage while charging. Must be above the station's minimum or charging will not start.

ImpUnconfirmed
4.6 A
Current at max power

The working current while charging. Vmp times Imp is roughly the rated watts.

Open-circuit voltage by morning temperatureone panel, -0.30%/°C, typical value, not published for this panel
29.7 V-10F
28.8 V10F
27.8 V32F
27.1 V50F
25.9 V77F

Why it matters: a station's input limit is a hard number. Two of these panels in series on a 10F morning make 57.6 V. That is fine for a 60 V input and not for a 27 V one.

Which stations it works with

One panel, 20F morning. Tap a row for the full result with wiring and cables.

EcoFlow RIVER 3 PlusAbout 100 W into the XT60i. Use an MC4 to XT60i solar cable.
Works
EcoFlow DELTA 3 PlusAbout 100 W into the XT60i. Use an MC4 to XT60i solar cable.
Works
EcoFlow DELTA Pro 3About 100 W into the XT60i (Low-PV). Use an MC4 to XT60i solar cable.
Works
Jackery Explorer 300 PlusFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 27V limit. Cold makes panels push more voltage.
Works, with a catch
Jackery Explorer 1000 v2About 100 W into the DC8020. Needs an MC4 to DC8020 adapter cable.
Works
Jackery Explorer 2000 PlusAbout 100 W into the DC8020. Needs an MC4 to DC8020 adapter cable.
Works
BLUETTI AC70About 100 W into the XT60 (XT60PM-M). Use an MC4 to XT60 solar cable.
Works
BLUETTI AC180About 100 W into the DC7909. Use an MC4 to DC7909 solar cable (the AC180 ships with one).
Works
BLUETTI AC200LAbout 100 W into the DC input (via DC input cable + solar charging cable). Check the station's manual for the right solar cable.
Works
Anker SOLIX C1000 Gen 2The brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
EcoFlow RIVER 2About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow RIVER 2 MaxAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow RIVER 2 Max 500About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow RIVER 2 ProAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow TRAIL 200 DCNot enough confirmed numbers to check yet.
EcoFlow TRAIL 300 DCNot enough confirmed numbers to check yet.
EcoFlow TRAIL Plus 300 DCNot enough confirmed numbers to check yet.
EcoFlow DELTA 3 ClassicNot enough confirmed numbers to check yet.
EcoFlow DELTA 3The manual or page does not give a current limit for this input, so current was not checked.
Works
EcoFlow DELTA 3 MaxNot enough confirmed numbers to check yet.
EcoFlow DELTA 3 Max PlusNot enough confirmed numbers to check yet.
EcoFlow DELTA 3 UltraNot enough confirmed numbers to check yet.
EcoFlow DELTA 3 Ultra PlusNot enough confirmed numbers to check yet.
EcoFlow DELTA 2 MaxAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow DELTA ProAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow DELTA Pro UltraOpen-circuit voltage 25.9V is below the 80V minimum for this input, so it will not start charging.
Don't connect
EcoFlow DELTA Pro Ultra XOpen-circuit voltage 25.9V is below the 80V minimum for this input, so it will not start charging.
Don't connect
EcoFlow DELTA miniAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow DELTA 1300 (1260Wh)About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow DELTA 1000About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
EcoFlow RIVER MaxOpen-circuit voltage 25.9V is above the station's 25V limit. The manual warns this can damage the station.
Don't connect
EcoFlow RIVER Max PlusOpen-circuit voltage 25.9V is above the station's 25V limit. The manual warns this can damage the station.
Don't connect
EcoFlow RIVER miniAbout 100 W into the DC input. Check the station's manual for the right solar cable.
Works
EcoFlow RIVER PlusOpen-circuit voltage 25.9V is above the station's 25V limit. The manual warns this can damage the station.
Don't connect
EcoFlow RIVER ProNot enough confirmed numbers to check yet.
EcoFlow RIVEROpen-circuit voltage 25.9V is above the station's 25V limit. The manual warns this can damage the station.
Don't connect
BLUETTI EB3AFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI AC2AFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI Pioneer 50 (AC60)Fine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI Pioneer MD (AC180T)The manual or page does not give a current limit for this input, so current was not checked.
Works
BLUETTI Pioneer 150 (AC240)About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI Apex 300About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI AC180PAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI AC200MAXAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI AC200P LAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI AC200POpen-circuit voltage 25.9V is below the 35V minimum for this input, so it will not start charging.
Don't connect
BLUETTI AC50BFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI AC50PFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI AC70PAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI EB70SFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI EP500Open-circuit voltage 25.9V is below the 55V minimum for this input, so it will not start charging.
Don't connect
BLUETTI EP500ProAbout 100 W into the PV input. Check the station's manual for the right solar cable.
Works
BLUETTI Elite 10 MiniFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI Elite 30 V2Fine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI Elite 100 V2About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI Elite 100 miniAbout 100 W into the DC input. Check the station's manual for the right solar cable.
Works
BLUETTI Elite 200 V2About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI Elite 300About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI Elite 400About 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI Handsfree 1Not enough confirmed numbers to check yet.
BLUETTI Handsfree 2Not enough confirmed numbers to check yet.
BLUETTI PS72Fine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
BLUETTI Pioneer NaAbout 100 W into the Solar input. Check the station's manual for the right solar cable.
Works
BLUETTI Premium 100 V2About 100 W into the DC input. Check the station's manual for the right solar cable.
Works
BLUETTI Premium 200 V2About 100 W into the PV input. Check the station's manual for the right solar cable.
Works
Anker SOLIX C200 DCFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
Anker SOLIX C200X DCNot enough confirmed numbers to check yet.
Anker SOLIX C200XFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
Anker SOLIX C300Fine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
Anker SOLIX C300 DCFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
Anker SOLIX C300XFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
Anker SOLIX C1000X Gen 2Not enough confirmed numbers to check yet.
Anker SOLIX C1000XThe brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Anker SOLIX C2000 Gen 2The brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Anker SOLIX F1500The brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Anker SOLIX F2600The brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Anker SOLIX F3000The brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Anker SOLIX F3800 PlusThe brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Anker SOLIX S2000Not enough confirmed numbers to check yet.
Anker SOLIX S5000Not enough confirmed numbers to check yet.
Jackery Explorer 100 PlusFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 27.2V limit. Cold makes panels push more voltage.
Works, with a catch
Jackery Explorer 240 v2Not enough confirmed numbers to check yet.
Jackery Explorer 300 v2Fine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
Jackery Explorer 300DFine in mild weather (25.9V), but on a 20°F (-7°C) morning the open-circuit voltage rises to about 28.4V, above the 28V limit. Cold makes panels push more voltage.
Works, with a catch
Jackery Explorer 300Not enough confirmed numbers to check yet.
Jackery Explorer 600 v2Not enough confirmed numbers to check yet.
Jackery Explorer 1000The brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Jackery Explorer 1000 PlusAbout 100 W into the DC8020. Needs an MC4 to DC8020 adapter cable.
Works
Jackery Explorer 1500 v2About 100 W into the DC8020. Needs an MC4 to DC8020 adapter cable.
Works
Jackery Explorer 1500 UltraAbout 100 W into the DC8020. Needs an MC4 to DC8020 adapter cable.
Works
Jackery Explorer 2000 v2The brand does not say whether its voltage limit is open-circuit or working voltage, so we check against the stricter open-circuit number.
Works
Jackery Explorer 5000 PlusAbout 100 W into the Low-PV (DC8020). Needs an MC4 to DC8020 adapter cable.
Works
Jackery HomePower 1000 v2Not enough confirmed numbers to check yet.
Jackery HomePower 1000 Plus v2Not enough confirmed numbers to check yet.
Jackery HomePower 2000 Plus v2Not enough confirmed numbers to check yet.
Jackery HomePower 3000About 100 W into the DC8020. Needs an MC4 to DC8020 adapter cable.
Works
Jackery HomePower 3600 PlusNot enough confirmed numbers to check yet.
Jackery HomePower 3600 Pro MaxNot enough confirmed numbers to check yet.

Sources

Shop listing, not yet confirmedLabel values are from a store listing. We will update once we have the manual. Price not checked yet.alza.huus.ankersolix.com
